Node-Red的HA节点使用说明

安装HomeAssistant节点

安装 node-red-contrib-home-assistant-websocket

安装node-red-contrib-home-assistant-websocket

节点使用

右侧调试按钮旁边有帮助,可查看每个节点的明细说明

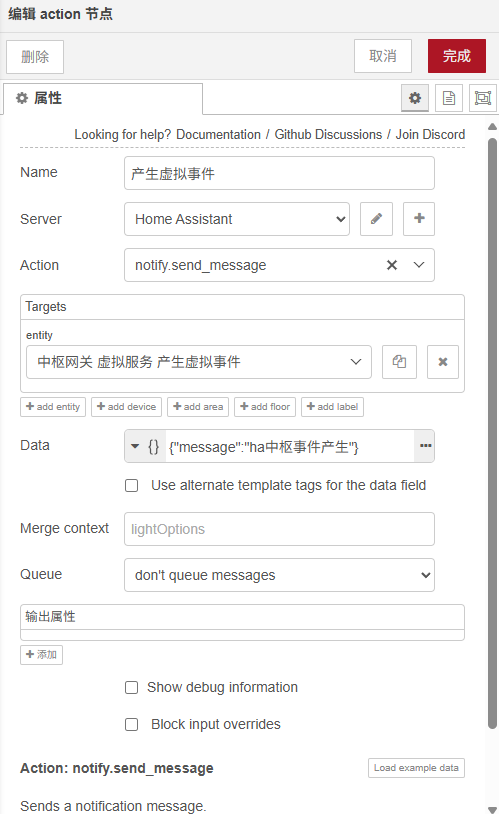

• 向米家中枢产生虚拟事件

  • 示例



  • 导入:更改实体id,data中message为虚拟事件名称

    [
        {
            "id": "f2bacf90858acf79",
            "type": "api-call-service",
            "z": "1de7721b40147778",
            "name": "产生虚拟事件",
            "server": "dbfb788ffb1f13f6",
            "version": 7,
            "debugenabled": false,
            "action": "notify.send_message",
            "floorId": [],
            "areaId": [],
            "deviceId": [],
            "entityId": [
                "notify.xiaomi_cn_1079853347_hub1_emit_virtual_event_a_4_1"
            ],
            "labelId": [],
            "data": "{\"message\":\"ha中枢事件产生\"}",
            "dataType": "json",
            "mergeContext": "",
            "mustacheAltTags": false,
            "outputProperties": [],
            "queue": "none",
            "blockInputOverrides": false,
            "domain": "notify",
            "service": "send_message",
            "x": 440,
            "y": 500,
            "wires": [
                []
            ]
        }
    ]
